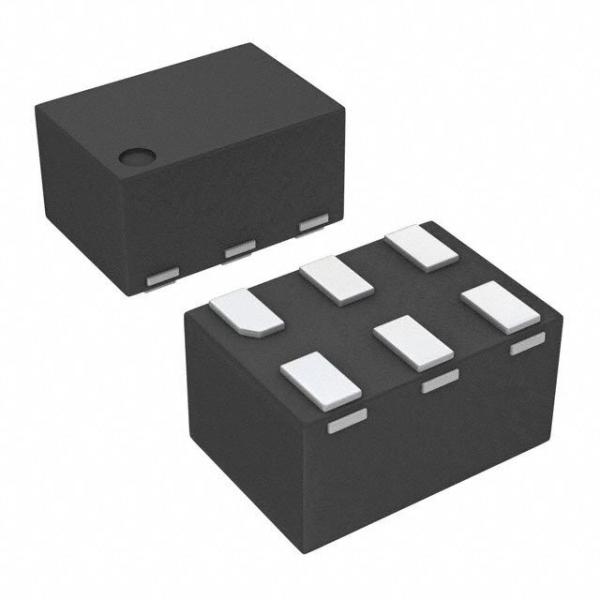

IGBT TI Power Module SN74LVC1G126DSFR 74LVC Surface Mount

Brand Name : Texas Instruments

Model Number : SN74LVC1G126DSFR

Certification : /

Place of Origin : N/S

MOQ : 1PCS

Price : Negotiation

Payment Terms : T/T

Supply Ability : 9999999+PCS

Delivery Time : 2-7 work days

Package : IGBT

Lead free status : RoHS Compliant

Lead time : 1-3 working days

Dissipation power : normal

Shipment : DHL\UPS\Fedex\EMS\China Post

Contact Now

IGBT Power Module Texas Instruments/TI SN74LVC1G126DSFR

ECAD Module PCB Symbol,Footprint & 3D Model
Supply and Demand Status Balance
Popularity High
Fake Threat In the Open Market 33 pct.
Quantity per package 5000
HTSUS 8542.39.0001
ECCN EAR99
REACH Status REACH Unaffected
MSL Level 1 (Unlimited)
Family Name 74LVC1G126
Case / Package 6-SON (1x1)
Package 6-XFDFN
Mounting Surface Mount
Package Reel - TR
Series 74LVC
Manufacturer Texas Instruments
Other Part Number 296-36724-2, -296-36724-1-ND, 296-36724-1, -296-36724-1, 296-36724-6, SN74LVC1G126DSFR-ND
Estimated Pruduction Lead Time 34 Weeks
Categories Integrated Circuits (ICs)
Features Buffer, Non-Inverting 1 Element 1 Bit per Element 3-State Output 6-SON (1x1)
Operating Temperature Range -40°C ~ 125°C (TA)

Features for the SN74LVC1G126

  • Available in the Texas Instruments
    NanoFree™ Package
  • Supports 5-V VCC Operation
  • Inputs Accept Voltages to 5.5 V
  • Provides Down Translation to VCC
  • Max tpd of 3.7 ns at 3.3 V
  • Low Power Consumption, 10-µA Max ICC
  • ±24-mA Output Drive at 3.3 V
  • Ioff Supports Live Insertion, Partial-Power-
    Down Mode, and Back Drive Protection
  • Latch-Up Performance Exceeds 100 mA
    Per JESD 78, Class II
  • ESD Protection Exceeds JESD 22
    • 2000-V Human-Body Model
    • 200-V Machine Model
    • 1000-V Charged-Device Model

Description for the SN74LVC1G126

This single buffer is designed for 1.65-V to 3.6-V VCC operation. The LVC1G126 device is a single line driver with 3-state output. The output is disabled when the output-enable input is low.
